Dutch Woven Wire Mesh Filter Grade

Materials of Stainless Steel Dutch Woven Wire Mesh is divided into Type 302, Type 304, Type 304 L, Type 316 and Type 316 L. Stainless Steel offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance. Filter Mesh is also supplied in brass, mild steel, nickel, steel or other metal materials also available at request. Mainly for filter and sieve use.

Comparing of Dutch Twill Weave, Dutch Plain Weave and Reverse Dutch Weave, from Physical Strength and Filter Properties:

Dutch Twill Woven Wire Mesh offers higher strength than regular Dutch woven wire cloth. It packs even more wires in a given area than Dutch plain woven wire cloth. Generally, Dutch Twill Woven Wire Cloth offers finer mesh counts and lower flow than Dutch Plain Woven Mesh and can be made to filter particles as fine as 2 microns in diameter.

Dutch Plain Wire Mesh is primarily used as filter cloth. This kind of woven wire cloth has a coarser mesh and wire in the warp direction and a finer mesh and wire in the weft direction. Dutch Plain Woven Wire Mesh makes an ideal filter cloth with a very compact, firm mesh with great strength.

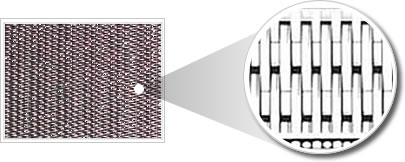

Reverse Weave: The apparent difference of reverse dutch weaving compared with standard dutch weave ( dutch plain and dutch Twill) lies in the thicker warp wires and less weft wires. Reverse dutch woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields.

Comparing of Dutch Weave Patterns with Common Plain and Twilled Weave:

Comparison of Common Plain Weave and Plain Dutch Weave:
Plain Dutch wire mesh offers better flow compared with plain weave.

Comparing Common Twilled Weaving Pattern with Twilled Dutch Weave:
Twilled dutch weave mesh offers a more dimensional opening.

Features and Uses:

Dutch Wire Mesh Filter Cloth excels in giving problem-free processing and is easily cleanable with excellent durability. In addition to superior mechanical strength, the Dutch Woven Wire Mesh possesses a higher beat stability than any other material. It shows an extremely high resistance to physical and chemical effects.

It is an ideal filter medium which can be easily worked and styled using available techniques.

In addition to the socalled open wire weaves with square or rectangular openings which can be woven down to a fineness of 20 ハm aperture, there are many combinations of filter weaves with retention in the micron range.

Woven wire cloth specifications are exact geometrical structures with uniform porosity, in contrast to fibrous felts made from paper, synthetic fibers or metal yarns.

Filter wire mesh of Dutch weaves made from metal wires (stainless steel, brass and alloys) are used for separation of solids and clear filtration of liquids, as in the cleaning of fuels or hydraulic liquids, or in water treatment.

Technical Information / Specifications of Dutch Wire Mesh Filter Cloth: Dutch Plain and Dutch Twill Weave:

Dutch Weave 304 and 316 Filter Mesh

Filter Grade Wire Mesh Plain Dutch Weave Specification. Filter Code from p28 to p280 : in Stainless Steel, Brass, Nickel and other Metal Alloys

Filter Code Quantity of Wire
/Inch
Wire Diameter
(mm)
Weaving Method Mesh Weight
(kg/m2)
Warp Weft Warp Weft
p28 7.1 40 0.710 0.630

Plain Dutch

5.26
p33 8.4 75 0.500 0.355 2.99
p40 10.2 75 3.11
p45 11.4 75 3.19
p50 12.7 75 0.450 3.11
p55 14 75 3.18
p60 15.2 100 0.400 0.280 2.57
p74 18.8 110 0.355 0.250 2.34
p80 20.3 110 2.39
p90 22.9 120 0.315 0.224 2.14
p100 25.4 140 0.280 0.200 1.90
p110 27.9 150 0.180 1.82
p120 30.5 150 0.250 1.74
p140 35.6 200 0.244 0.140 1.43
p160 40.6 220 0.180 0.125 1.21
p180 45.7 250 0.160 0.112 1.08
p200 50.8 280 0.140 0.100 0.95
p220 55.9 280 0.97
p240 61 300 0.090 0.93
p260 66 300 0.125 0.89
p280 71.7 350 0.112 0.080 0.78

Reverse Weave Wire Mesh Stainless Steel:

Mesh per Inch (25.4mm)
Warp x Weft
Wire Diameter (mm)
Warp x Weft
Density of Warp Number/dm Fineness of Filtering
(micron)
Weight
(kg/m2)
48 X 10 0.5 X 0.5 189 300 3.63
290 X 76 0.09 X 0.19 1142 40 1.27
400 X 120 0.058 X 0.1 1575 30 0.64
625 X 104 0.04 X 0.15 2461 28 0.84

Stainless Steel Wire Mesh (Cloth) Twilled Dutch Woven, 20x250 to 400x2800 Mesh: Specified Gauge, Mesh, Wire Diameter and Particle Passing Values.

Twilled Dutch
Gauge Mesh Wire Diameter Reference Values Of Particles Passed
80 20*250 0.28*0.2 38
120 30*300 0.25*0.18 36
200 50*500 0.14*0.11 34
320 80*700 0.11*0.08 32
320 80*780 0.10*0.07 30
360 90*780 0.10*0.07 25
400 100*780 0.10*0.07 22
400 100*900 0.10*0.063 20
500 120*1100 0.07*0.05 17
630 150*1400 0.063*0.04 16
650 165*1400 0.07*0.04 14
685 180*1800 0.063*0.032 13
795 200*1400 0.07*0.04 12
795 200*1800 0.05*0.032 10
850 210*1900 0.045*0.03 10
1000 250*2000 0.045*0.028 8
1125 280*2200 0.036*0.026 7
1200 300*2200 0.036*0.026 6
1250 325*2300 0.035*0.025 5
1600 400*2800 0.03*0.018 3

Filter Grade Wire Mesh Twill Dutch Weave in A variety of Alloys including stainless steel and monel.

Filter Code Quantity of Wire/Inch Metal Wire Diameter
(mm)
Weaving Method
Mesh Weight

(kg/m2)

Warp Weft Warp Weft
x320 81.3 780 0.100 0.071 Twill 1.17
x360 91.4 789 1.21
x400I 101.6 900 0.063 1.13
x400II 101.6 780 0.071 1.24
x500 127 1100 0.071 0.050 0.85
x520 132 1100 0.86
x630I 160 1500 0.063 0.036 0.67
x630II 160 1400 0.040 0.72
x685 174 1400 0.78
x795 202 1800 0.050 0.032 0.57
x850 216 1900 0.045 0.030 0.52
x1000 254 2000 0.040 0.028 0.50
x1125 285.8 2300 0.036 0.025 0.47
x1250 317.5 2300 0.44
Note: Appropriate mesh weight is calculated according to stainless steel wire mesh.

Stainless Steel Wire Mesh, Dutch Twill Weave: with Mesh, Wire and AISI Material Grades

Mesh Wire Dia. (MM) Material(AISI)
12meshX64mesh 0.58/0.40 304 or 316
24meshX110mesh 0.36/0.25 304 or 316
14meshX88mesh 0.50/0.33 304 or 316
30meshX150mesh 0.18/0.14 304 or 316
40meshX200mesh 0.14/0.11 304 or 316
50meshX250mesh 0.10/0.071 304 or 316
80meshX700mesh 0.06/0.05 304 or 316
165meshX800mesh 0.071/0.040 304 or 316
165meshX1400mesh 0.05/0.032 304 or 316
200meshX1800mesh 0.05/0.03 304 or 316
325meshX2300mesh 0.030/0.025 316L
400meshX2800mesh 0.030/0.02 316L
