Extruder Screen

Why is it called Extruder Screen?

Extruder screen is a pack type filter element made of metal wire mesh layers, designed for the melt filtration process. It is used in plastic and rubber processing machinery to ensure a clean and viable extrusion. This is the reason why this type of filter parts is called Extruder Screen.

Extruder Screen

Extruder screen, Wire Mesh Filter Parts

Benefits of Using Extruder Screen:
- To filter out contaminants and improve mixing and product purity, reduce your maintenance and repair costs.
- With smooth screening surface with no sharp edges, burrs or acute angles.
- Available in different size, variants and specifications.
- Highly durable with robust structure.
- Anti-abrasive & anti-corrosive in nature.
- High quality and filtration capacity.
- Precise fitting filter elements.
- Optimum cost-performance ratio.
- Constant quality control during production.

The frame materials for the extruder screen can be stainless steel, brass, aluminum and nickel-plated copper. It can be single layer or multilayer.

Extruder screen Shape: circle, disc, round, oval, rectangular, cones, or other special shape, spot weld packs

Applications of Extruder Screen:
Prominently used in plastic and rubber industries. Extruder Screen plays a vital role in avoiding the mixing of foreign particles with finally prepared extrusion product. They give a clean as well as clear extrusion while used.

Major Styles of Extruder Screen:
•Disc Type Extruder Screen
•Welded Multilayer Extruder Screen
•Cylindrical Extruder Screen

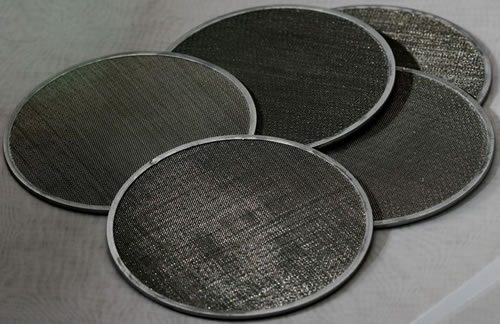

Extruder screen with compressed edges
Extruder screen with compressed edges

Standard Extruder Screen 10*10 to 500*500
Mesh Wire Dia. mm Aperture Size mm Open Area
10×10 0.711 1.829 mm 51.8
14×14 0.457 1.357 mm 55.9
16×16 0.457 1.131 mm 50.7
20×20 0.559 0.711 mm 31.4
20×20 0.457 0.813 mm 41.0
24×24 0.376 0.682 mm 41.4
30×30 0.376 0.531 mm 34.2
30×30 0.310 0.536 mm 40.0
40×40 0.274 0.361 mm 32.3
50×50 0.193 0.335 mm 43.6
60×60 0.193 0.230 mm 29.8
80×80 0.122 0.196 mm 37.9
100×100 0.102 0.152 mm 36.0
120×120 0.091 0.120 mm 31.8
150×150 0.071 0.088 mm 29.6
200×200 0.050 0.077 mm 36.76
250×250 0.040 0.062 mm 36.76
300×300 0.040 0.045 mm 27.83
325×325 0.035 0.043 mm 30.49
400×400 0.028 0.036 mm 31.25
500×500 0.025 0.026 mm 25.79
