Micron Wire Mesh Screen

Arch supplies micron woven wire mesh screen knitted or woven by stainless steel fine yarn for filtering and silk printing mesh.

Stainless Steel Micron Wire Screen General Information:
1. Material : 304 304L 316 316L
2. Knitting and weaving: Plain, Dutch and twill ;
3. Feature: acid and alkali resistance, high-temperature resistance, tension and strong abrasion resistance
4. Usage : This fine wire mesh screen is used for screening and filtering in acid or alkali environment; used as slurry screen in petroleum industry, filtering screen in chemical industry and acid washing screen in galvanization industry.

316 stainless steel micron wire mesh Count: 3mesh to 630mesh. Can be divided into plain weave and twilled weave or Dutch weave.

Specification:
1.mesh:plain weave 1-400 twill weave:80-636
2.Width:1m-8m
3.Standard length:30m
4.Woven type:plain, twill, dutch,5shaft
5.Material: SUS302,304,316,316L,310,310S
6.Features:Acid alkali resistant,heat resistant,corrosion resistant.

316 stainless steel micron wire mesh Plain weave:
A square pattern weave where wires are equally spaced. Each weft wire passes over and under one warp wire and each warp wire passes over and under one weft wire

316 stainless steel micron wire mesh Twill weave:
A square pattern weave where each weft wire passes over and under two warp wires and each warp wire passes over and under two weft wires.

316 Stainless steel Dutch wire mesh screen:
Dutch or 'Hollander' Weave is a description applied to woven wire cloth where the diameter of the warp and weft wires, and the mesh count in the warp and weft directions, are different.

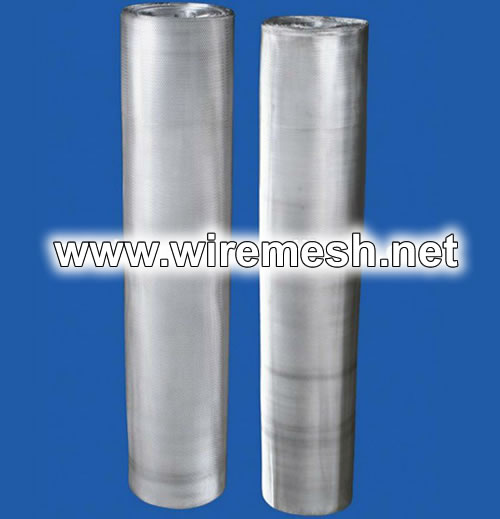

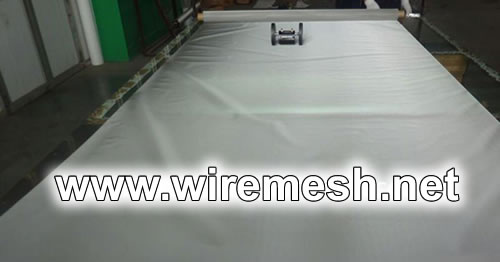

Fine Woven Stainless Steel Wire Mesh

Knitted Wire Cloth, 316
Knitted Wire Cloth, 316

Stainless Steel Mesh Screen for Silk Printing
Stainless Steel Mesh Screen for Silk Printing

Common SS Wire Filtering Screen and Printing Screen Specifications:

Specification list of Stainless Steel Wire Mesh / Woven Wire Cloth

Meshes Per Linear Inch

Diameter of Wire

Width of Opening

Open Area, %

Inches

mm

Inches

mm

1

0.135

3.5

0.865

21.97

74.8

1

0.120

3.0

0.880

22.35

77.4

1

0.105

2.5

0.895

22.73

80.1

1

0.080

2.0

0.920

23.36

84.6

3/4"

0.120

3.0

0.630

16.00

70.5

3/4"

0.080

2.0

0.670

17.01

79.8

2 x 2

0.120

3.0

0.380

9.65

57.8

2 x 2

0.105

2.5

0.395

10.03

62.4

2 x 2

0.080

2.0

0.420

10.66

70.6

2 x 2

0.063

1.6

0.437

11.10

76.4

2 x 2

0.047

1.2

0.453

11.50

82.1

3 x 3

0.080

2.0

0.253

6.42

57.6

3 x 3

0.063

1.6

0.270

6.85

65.6

3 x 3

0.047

1.2

0.286

7.26

73.6

4 x 4

0.080

2.0

0.170

4.31

46.2

4 x 4

0.063

1.6

0.187

4.75

56.0

4 x 4

0.047

1.2

0.203

5.15

65.9

5 x 5

0.047

1.2

0.153

3.88

58.5

5 x 5

0.041

1.0

0.159

4.01

63.2

6 x 6

0.063

1.6

0.104

2.64

38.9

6 x 6

0.047

1.2

0.120

3.04

51.8

6 x 6

0.035

0.9

0.132

3.35

62.7

8 x 8

0.063

1.6

0.062

1.57

24.6

8 x 8

0.047

1.2

0.078

1.98

38.9

8 x 8

0.035

0.9

0.090

2.28

51.8

8 x 8

0.032

0.8

0.093

2.36

55.4

8 x 8

0.028

0.7

0.097

2.46

60.2

10 x 10

0.047

1.2

0.053

1.34

28.1

10 x 10

0.035

0.9

0.065

1.65

42.3

10 x 10

0.032

0.8

0.068

1.27

46.2

10 x 10

0.025

0.63

0.075

1.90

56.3

12 x 12

0.041

1.0

0.042

1.06

25.4

12 x 12

0.035

0.9

0.048

1.22

33.2

12 x 12

0.032

0.8

0.051

1.29

37.5

12 x 12

0.028

0.7

0.055

1.39

43.6

12 x 12

0.023

0.58

0.060

1.52

51.8

14 x 14

0.032

0.8

0.039

1.52

29.8

14 x 14

0.025

0.63

0.046

0.99

41.5

14 x 14

0.023

0.58

0.048

1.22

45.2

14 x 14

0.020

0.5

0.051

1.30

51.0

16 x 16

0.028

0.7

0.035

0.89

30.5

16 x 16

0.023

0.58

0.040

1.01

39.9

16 x 16

0.018

0.45

0.045

1.14

50.7

18 x 18

0.020

0.5

0.036

0.91

41.1

18 x 18

0.018

0.45

0.038

0.96

48.3

20 x 20

0.023

0.58

0.027

0.68

29.2

20 x 20

0.020

0.5

0.030

0.76

36.0

20 x 20

0.018

0.45

0.032

0.81

41.0

20 x 20

0.016

0.40

0.034

0.86

46.2

24 x 24

0.014

0.35

0.028

0.71

44.2

28 x 28

0.010

0.25

0.026

0.66

51.8

30 x 30

0.013

0.33

0.020

0.50

37.1

30 x 30

0.012

0.30

0.021

0.53

40.8

35 x 35

0.012

0.30

0.017'

0.43

33.8

35 x 35

0.010

0.25

0.019

0.48

42.4

40 x 40

0.014

0.35

0.011

0.28

19.3

40 x 40

0.012

0.30

0.013

0.33

27.4

40 x 40

0.010

0.25

0.015

0.38

36.0

40 x 40

0.0095

0.24

0.016

0.40

38.4

50 x 50

0.009

0.23

0.011

0.28

30.3

60 x 60

0.0075

0.19

0.009

0.22

30.5

70 x 70

0.0065

0.17

0.008

0.20

29.8

80 x 80

0.0070

0.18

0.006

0.15

19.4

80 x 80

0.0055

0.14

0.007

0.17

31.4

90 x 90

0.0055

0.14

0.006

0.15

25.4

100 x 100

0.0045

0.11

0.006

0.15

30.3

120 x 120

0.0040

0.10

0.0043

0.11

26.6

120 x 120

0.0037

0.09

0.005

0.12

30.7

150 x 150

0.0026

0.066

0.0041

0.10

37.4

165 x 165

0.0019

0.048

0.0041

0.10

44.0

180 x 180

0.0023

0.058

0.0032

0.08

33.5

180 x 180

0.0020

0.050

0.0035

0.09

41.1

200 x 200

0.0020

0.050

0.003

0.076

36.0

200 x 200

0.0016

0.040

0.0035

0.089

46.0

220 x 220

0.0019

0.048

0.0026

0.066

33.0

230 x 230

0.0014

0.035

0.0028

0.071

46.0

250 x 250

0.0016

0.040

0.0024

0.061

36.0

270 x 270

0.0014

0.040

0.0022

0.055

38.0

300 x 300

0.0012

0.030

0.0021

0.053

40.1

325 x 325

0.0014

0.040

0.0017

0.043

30.0

325 x 325

0.0011

0.028

0.0020

0.050

42.0

400 x 400

0.0010

0.025

0.0015

0.038

36.0

500 x 500

0.0010

0.025

0.0011

0.028

25.0

635 x 635

0.0009

0.022

0.0006

0.015

14.5
