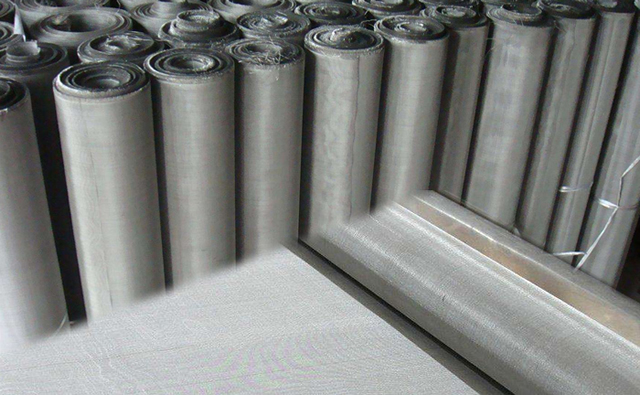

Nickel Alloy Wire & Wire Mesh

Arch supplies corrosion resistant nickel based alloy wires and woven mesh cloth. Nickel Alloy Mesh Wire Types mainly include Monel, Inconel, Nickel Chromium Wire, Hastelloy, molybdenum, nickel copper, nickel titanium and nickel silver. Mainly used in corrosion resistant and high temperature work conditions as filteration, electric heating, shielding, insulation, jacketing and other industrial uses. A list of nickel alloy materials with related links to specific page introduction.

Nickel Alloy Wires:

NiCr, CuNi, Fe-Cr-Al, Pure nickel, Thermocouple wire, ribbon wire.

1) Nickel Chrome Alloys: NiCr 80/20, NiCr 70/30, NiCr60/15, NiCr 30/20, NiCr35/20.
2) Fe-Cr-Al Alloys: 0Cr25Al5, 0Cr21Al6, 0Cr23Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2.
3) Copper Nickel Alloys: CuNi 2, CuNi 6, CuNi 8, CuNi 10, CuNi 23, CuNi 30, CuNi 34, CuNi 44, Manganin, Constantan.
4) Thermocouple wire: Type K, N, E, J, T, S, R, B.
5) Pure Nickel wire, ribbon/strip.
6) Pure Silver wire & strip.
7) Monel wire

Monel Mesh ( Nickel content: 63%)

Monel Wire Mesh, basically a kind of Nickel-copper alloy mesh with main chemical components of the materials are nickel and copper. Popular monel mesh materials are Monel 400 or Monel K-500.

Material: Nickel based copper alloy, containing minimum 63% Nickel and 28% Copper.
Grade: Monel 400 and k500
Melting Point: 1300 degree-1350 degree
Mesh Counts: from 1-200mesh/inch
Micron Size:10-1000microns
Wire Diameter: 0.025-2.03mm
Weaving: Plain weave, twill weave, dutch weave.
Mesh Roll: 1x30m, 2x30m, 1.524x30m, 0.914x30m.
Mesh Surface: Flat and smooth
Hole Shape: Square

Inconel Mesh

Inconel Alloy Wire Mesh is made with nickel-chromium-iron base alloy material. This special wire cloth offers good heat resistance, corrosion resistance, oxygen resistance, good cold and heat processing and welding property. Inconel wire mesh has satisfying heating strength and high elasticity under 700 centigrade.

Major Material: Inconel 600, Inconel 601, Inconel 625, Inconel 718 (N07718), Inconel X-750

Nickel Chrominum Alloy Wire

Material: Nichrome Wire Cr20Ni80, Cr15Ni60, Cr20Ni35

Mainly used as Heating Resistant Alloy Wire.

Size range:

Wire Diameter: 8.00~0.02

In Ribbon t=2.90~0.05 w=40~0.4

Strip ( flat wire) t=0.40~0.02 w=120~5

Electric Heating Resistant Nickel Alloy Wire

Hastelloy C4 Filter Wire Mesh

Material Hastelloy C-22, C-276, B-2, B-3
Mesh 2-200mesh
C-276 wire mesh is one of the most corrosion resistant metal materials. Mainly resistant to wet chlorine, all kinds of oxidizing chloride, chlorate solution, sulfate and oxidizing salt, have good corrosion resistance in muriatic acid of low and medium temperature.

Features:
Hastelloy wire mesh features corrosion reistance; acid and alkali resistance; high temperature resistance; salty resistance; chemical stability; outstanding filtering performance.

Applications

Hastelloy wire mesh has various application in chemical industry, petrochemical industry, flue gas desulfurization, plup and paper making, environment protection industry and some other corrosion environment.

Hastelloy Wire Mesh Cloth
Hastelloy C4 Nickel Chrome Woven Wire Cloth

Chemical Composition:

Type C Co Cr Cu Fe Mn Mo Ni P S Si Sn V W
H-B 0.12 2.5 1.00 - 6.0 1.0 26.0-30.0 Rem 0.01 - 0.03 - 0.6 -
H-C22 0.015 2.5 14.5 - 20.0 - 2.0-6.0 0.5 12.8-14.5 Rem - 0.02 0.08 - 0.35 -
H-C276 0.02 2.5 14.5 - 16.5 - 4.0-7.0 1.0 15.0-17.0 Rem 0.03 0.03 0.08 - 0.35 3.0 - 4.5
H-X 0.08 - 17.0 - 20.0 1.0 Rem 2.0 - 34.0-37.0 0.03 0.03 0.75- .50 0.025 - -

Nickel Molybdenum Chromium Alloy Wire Mesh

stainless steel nickel wire mesh
Nichrome Metal Mesh Fabric/ Corrosion resistance 100 mesh
