Profile Wire Screen

Profile Wire Screen is also named wedge wire screen and V-wire screen. It is supplied in stainless steel and other special steel metals and alloy metal screens, mainly used on dewatering equipment. Profile Wire Screen is made with certain size of woven wire cloth as screen fabrics, then framed with stainless steel or coated carbon steel plates.

wedge wire screen
Profile Wire Screen/Wedge Wire Screen

Profile Wire Screen Materials: Carbon steel and stainless steel (302,304,304L,316,316L etc).

Structures of Profile Wire Screen:
We supply profile wire screen in flat, curved or cylindrical panels made of looped, round and/or wedge shaped woven wires for precise openings.

Profile Wire Screen

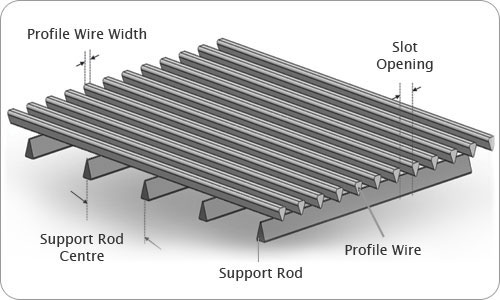

Profile Wire Structure in a view: with profile wire width, support rod and slot opening

Profile Wire Screen Characteristicts: resistance to acid, alkali, high temperature and abrasion.

Profile Wire Screen Usages: It is widely used in mine, coal and carbon, petroleum, fertilizer, foodstuff, environment protection industries, filtration, and dehydration.

Profile Wire Screen Types:

Panel shape profile wire screen;

Cylinder shape profile wire;

Wedge wire grids;

Wedge wire screen sieves.

Type Grade Thickness(mm) Aperture(mm)
Round barrel-shaped Sieving Mesh High 2 0.5
Middle 2.0-2.5 0.5-3
Low 2.0-2.5 above 3
Sieving Basket High 2 0.5
Middle 2.0-2.5 0.5-3
Low 2.0-2.5 above 3
Sieve Bend Screen Mesh High 2 0.5
Middle 2.0-2.5 0.5-3
Low 2.0-2.5 above 3

Profile Wire Offering the Following Advantages:

  • A continuous slot opening which significantly increases the available open area, thus providing greater access to the water bearing zone.
  • A “V”shaped profile wire which avoids clogging and ensures an uninterrupted flow.
  • A uniform and efficient well development due to the continuous slot opening.
  • Ladder-like wire welded screens have a strong structure and high open area, as well as accurate slot dimension.
  • 5.Ladder-like wire welded screens have the features of easy backwashing, last long, safety and reliability as well as low comprehensive cost.
