Stainless Steel Architectural Mesh

Architectural wire mesh is made with super quality stainless steel, aluminum alloy, brass, copper or other alloy materials. Stainless steel decorative wire mesh for architectures is non-rust and can be used for both internal and external applications. When exposed to the elements it is largely self maintaining from a cleanliness perspective. Both durable and flexible, as well as being produced from fully recyclable raw materials, Arch wire mesh systems can be designed to fit most architectural structures.

Arch supplies Stainless Steel wire mesh fabrics for modern architecture decoration uses. Major forms include ss woven mesh, decorative grille, architectural screen and shading, etc. It is widely used as curtains, screens for dining hall, isolation in hotels, ceiling and wall decoration, façade and fencing uses. We also supply stainless steel architectural perforated metal mesh.

Stainless steel architectural screen mesh has the features of non rust, excellent corrosion resistance, acid and alkali resistance. It offers versatility, unique texture, variety of colors, durability and flexibility, suitable for building decoration. When it is used as curtains, it offers a variety of color changes with light and gives unlimited imagination.

Material: AISI 304, 316, 316L.

Structure: Cable and bars composite.

Design Material Cable Cable pitch Bar Bar pitch Weight Width
1 304/316/316L 1x1.8mm 4mm 1.5mm 5.5mm 7.74kg/m2 0-8m
2 304/316/316L 3x2mm 80mm 3mm 10mm 6.67kg/m2 0-8m
3 304/316/316L 4x0.75mm 26.4mm 1.5mm 3mm 5.3kg/m2 0-8m
4 304/316/316L 4x1mm 36mm 2mm 4mm 7.25kg/m3 0-8m
5 304/316/316L 4x2mm 50mm 3mm 6mm 11.56kg/m4 0-8m
6 304/316/316L 2x2mm 80mm 3mm 6mm 10.8kg/m5 0-8m

Metal Wire Mesh Fabric Curtains AISI316 Architectural Mesh with Rod Structure
Metal Wire Mesh Fabric Curtains AISI316 Architectural Mesh with Rod Structure

Stainless Steel Decorative Wire Mesh Application Illustration

Arch can provide wire mesh for architecture and decorations and these products are used mainly as decorative coverings for the whole buildings, walls, ceilings or floors.

In architecture and design, stainless steel fabrics are used for decoration as:
Wire mesh facades;
Shade screens;
Architecture ceilings;
Metal draperies for walls, partition and isolation screens;
Staircases isolation screen, elevator cabins screen;
Floor covering fabrics;
Other special uses.

Stainless Steel Decorative Wire Mesh Application Stainless Steel Decorative Wire Mesh Application

Stainless Steel Decorative Wire Mesh Application Stainless Steel Decorative Wire Mesh Application

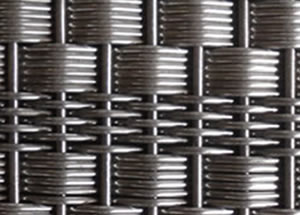

Structures and Forms Samples:
Arch decorative mesh made of ss materials are supplied in various forms and structures. Types including honeycomb, knitted, looped wire and creative weaving.

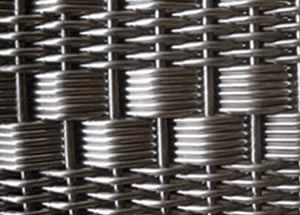

Architectural Decorative Mesh Stainless Steel, Weaving Pattern 01 Architectural Wire Mesh For Decoration: Weave Pattern 02
Architectural Decorative Mesh Stainless Steel, Weaving Pattern 01 Architectural Wire Mesh For Decoration: Weave Pattern 02

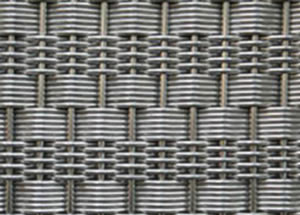

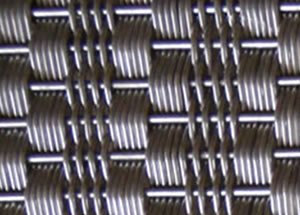

Architectural Mesh Stainless Steel Weave Pattern 03 Architectural Screen Mesh Weave Pattern 04
Architectural Mesh Stainless Steel Weave Pattern 03 Architectural Screen Mesh Weave Pattern 04
