Wire Netting

Arch metal wire net is available with a variety of weaving styles and sizes. The wire diameter, wire spacing and fabric size vary according to practical applications. Typical materials include stainless steel, brass and copper, nickel, monel, inconel and metal alloys.

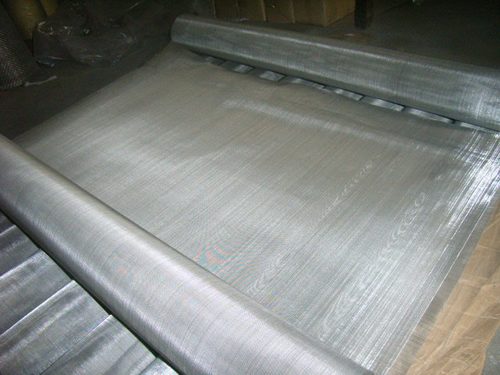

Stainless Steel - Stainless steel wire netting materials have SUS 201,202,304,316,316l ,310S 410 430 etc.
Weave type: plain weave, dutch weave, twill weave, plain dutch weave, twilled dutch weave, reversed dutch weave, etc.

Stainless wire net is widely used in chemical industry, environment protection, mine industry, airspace industry, paper-making, electronic industry, metallurgy industry, food industry, pharmacy. It is acid-resisting, alkali- resisting, heat-resisting and wear-resisting.

Woven Wire Net

Specification of Stainless Steel Wire Nets:

Mesh per inch Wire diameter(mm) Aperture(mm)
3 2.108 6.27
4 2.080 4.27
5 1.220 3.86
6 1.193 3.04
8 0.915 2.26
10 0.91 1.63
20 0.34 0.93
30 0.24 0.61
50 0.14 0.368
60 0.19 0.23
60 0.12 0.30
80 0.12 0.20
80 0.09 0.227
100 0.1 0.154
120 0.07 0.142
150 0.06 0.109
150 0.07 0.10
165 0.05 0.104
180 0.06 0.081
180 0.05 0.091
180 0.03 0.111
200 0.06 0.067
225 0.05 0.063
230 0.03 0.080
250 0.04 0.062
270 0.04 0.054
280 0.035 0.056
300 0.04 0.045
325 0.035 0.043
363 0.03 0.048
400 0.028 0.0355
500 0.025 0.0258

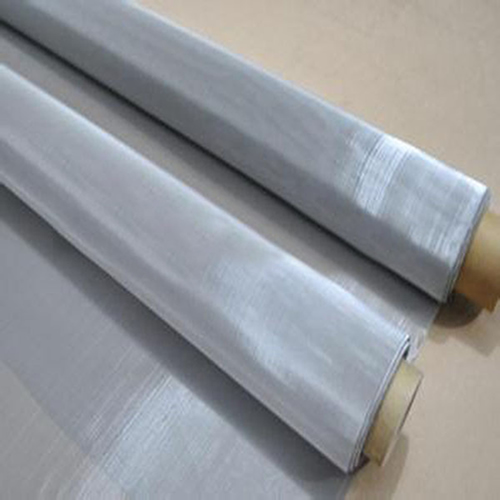

Nickel - Nickel wire net cloth is widely used in woven wire cloth as a corrosion resistant medium. It protects itself by forming a passive oxide film, thus resisting corrosion in many oxidizing environments. In today's industry, nickel is replaced with stainless steel when Possible for cost savings.

Nickel Wire Netting

Monel Wire Net - This alloy is essentially non-corrodible. Composed of 67% nickel, 28% copper and 5% others. Monel is more corrosion resistant than copper in oxidizing conditions and more resistant than nickel under reducing conditions. Monel wire net has good strength characteristics and has traditionally been used in food processing. As with nickel, it can be replaced with stainless steel.

Monel 400 and Monel 500 Types:

Material C Mn Si S Ni Cu Fe
Monel 400 ≤0.30 ≤2.00 ≤0.50 ≤0.024 ≥63 28.0~34.0 ≤2.5

Material C Mn Si S Ni Cu Ti Al Fe
Monel 500 ≤0.25 ≤1.50 ≤0.50 ≤0.010 ≥63 27.0
~33.0
0.35
~0.85
2.30
~3.15
≤2.0

Nichrome Wire Net- Nichrome A 60% nickel and 15% chromium alloy used in certain chemical conditions at temperatures up to 1700 Contains 1% silicon which helps keep scaling to a minimum. Subject to carbide precipitating characteristics.

Nichrome V - Similar to Nichrome, this alloy has a higher nickel content - 80% nickel and 20% chromium. It is used in severe chemical conditions at elevated temperatures up to 2000

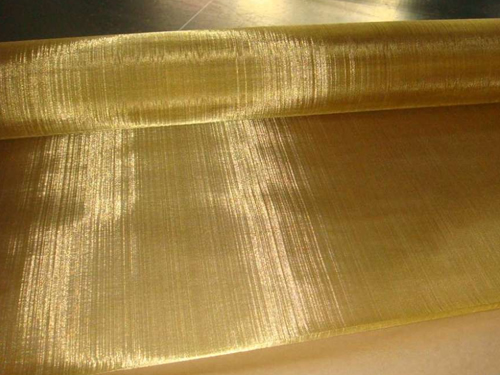

Brass Wire Netting:
Brass wire nets can be divided into the following types according to the materials details:
Brass Wire Netting (Wire Net) H65
Brass Wire Netting (Nets) H68
Brass Wire Netting (Nets) H80
Red Copper Wire Net
Phosphor Bronze Wire Net

Brass H80 Wire Net

Inconel Alloy 600 Wire Nets - 72% nickel and 15% chromium content makes Inconel 600 suitable for high temperature applications where corrosion resistance is important. Frequently used for heat-treating baskets.

material C Mn Si P S Cr Ni Cu Fe
Inconel 600 ≤0.15 ≤1.00 ≤0.50 ≤0.030 ≤0.015 14.0
~17.0
71.0
~78.0
≤0.50 6.0
~10.0
