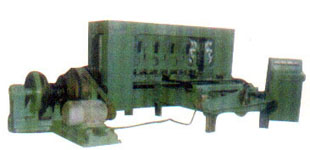

Expanded Metal Mesh Machine

Expanded Metal Mesh Machine Expanded Metal Mesh Machine

Expanded Metal Mesh Machine
Expanded Metal Mesh Machine
Expanded Metal Mesh Machine

Series Flattening Machine

Main Parameter of Expanded Metal Mesh Machine
Type RS25-6.3 RS25-16 RS25-25 RS25-63A RS25-63B RS25-160A RS25-160B
Depth(mm) max.1.0 max.1.0 max.1.5 max.2.5 max.3 max.6 max.6
Width(mm) 500 1000 1250 2000 2000 2500 2500
Times 180/min 150/min 150/min 70/min 45/min 70/min 20/min
Distance(mm) 0-1.15 0-1.2 0-1.2 0-4 0-4 0-7 0-7
Length of Mesh(mm) max.20 max.25 max.30 max.100 max.200 max.250 max.250
Motor 2.2KW 3KW 4KW 11KW 11KW 22KW 22KW
Weight 0.95T 2T 3T 10T 10T 18T 20T
Measurement (mm) 950 x 570 x1780 1800 x 1320 x1550 1940 x 1600 x 2010 2400 x 3500 x 2300 2400 x 3500 x 2300 5500 x 1750 x 3300 5500 x 1750 x 3300
